Product Details:
|
Detection: | Vehicles:6500m Human: 2500m Fire Point (@2x2m): 3000m | Recognition: | Vehicles:1800m Human: 800m |
---|---|---|---|
Lens: | 50mm | Pixel: | 640x512 |
Highlight: | Vehicle Mounted Thermal Imaging Camera,Ir Thermal Imaging Camera,Alu Alloy PTZ Thermal Imaging Camera |
1. 8-320mm full HD visible camera, 2 mega pixels CCD, 1-10km detection range in the daytime.
2. 75mm/105mm /155mmthermal camera, 384*288/640*512 resolution, 1-18km detection range at day/night.
3.45mk NETD produces crisp thermal image under all weather conditions.
4. Fog penetration (optional), optical filtering and image Processing.
6.IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.

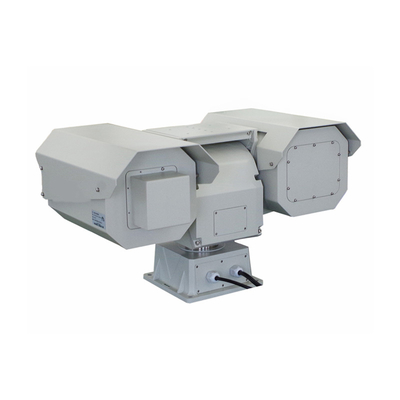

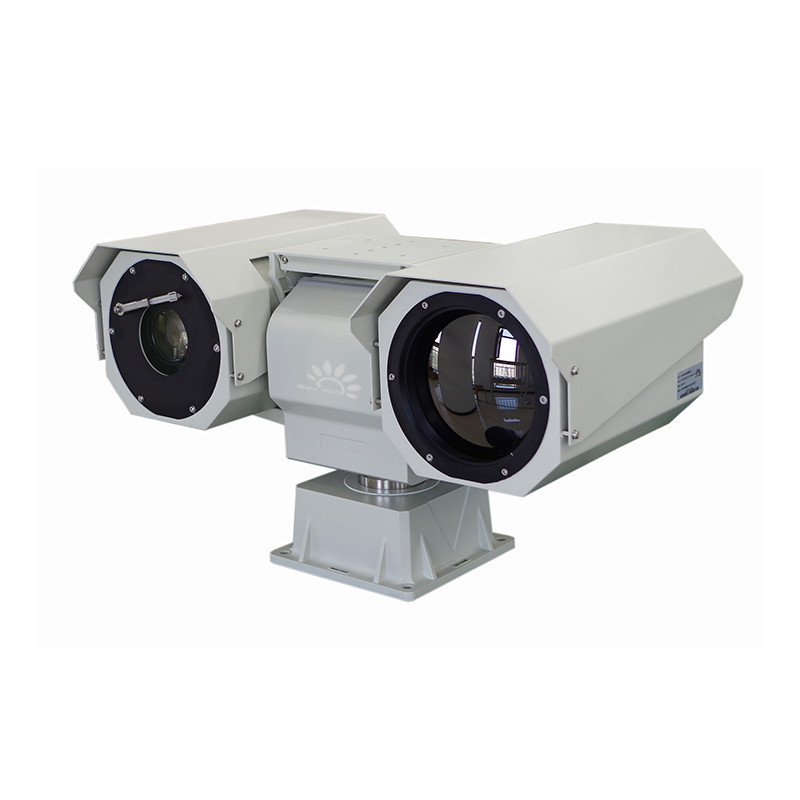

HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 384*288/640*512 uncooled thermal camera with large caliber. In combination with 360-degree PT, the camera is capable of conducting 24 hours real-time monitoring within 1km-10km. With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions.
Border/Costal defense, harbor, oil field, river lane, airport, safe city
Model | HP-HTVC6519-2150 |
Detection | Vehicle: 16km;Human:5.8km |
Identification | Vehicle:4.2km;Human: 1.6km |
Thermal sensor |
VOx uncooled detector, 640*512 resolution for option 7.5um-14um spectral response, 45mk NETD |
Thermal lens |
38mm~190mm,
|
5X continuous zoom, auto focus | |
64X digital zoom | |
Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
Enhancement |
1.Protection from strong light, Sunburn protection 2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature 3. Scene mode: support multi-configuration scene, adapt to different environment application |
Intelligent Analysic |
1.Intrusion detection; 2.Fire Alarm/Hot Alarm 3. Ranging Scale; 4.Support Auto Track (together with software) |
Visible Camera sensor | 1/1.8'' CMOS |
0.0002lux super high sensitive color to B/W CCD | |
2.1 MP resolution | |
Automatic ICR switch | |
H.264/MPEG4/MIPEG | |
32Kbps~16Mbps,60Hz30 FPS | |
Visible Camera lens |
8mm~500mm
|
62X zoom | |
Auto focus | |
2MP full HD resolution | |
Housing | Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
Structure:Integrated multi-window design | |
Surface coating:PTA three-resistance coating, Seawater corrosion resistance | |
Built-in thermostat, design of thermal equilibrium | |
Interface:Aviation waterproof plug | |
PTZ | Load:50kg |
Pan: 0~360°, Tilt: +45°~-45° | |
Speed:Pan: 0.01~30°/S, Tilt: 0.01~15°/S | |
Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function | |
Interface | RJ45 Interface |
Video format | H.264, Dual video output |
Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
Support ONVIF2.0 | |
Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional | |
Power supply | AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
Environment | Operating temperature:-35℃~+60℃(-45℃ optional);Storage temperature:-40℃(-50℃ optional)~+65℃ |
Humidity:<90% | |
Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
Ingress protection:IP66 |
