|Detection:||Vehicles:4200m Human: 1640m||Recognition:||Vehicles:1200m Human: 600m|

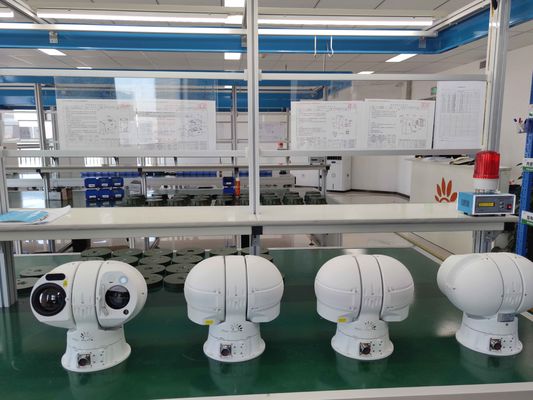

White PTZ Thermal Imaging Camera,
PTZ Thermal Imaging Camera Aluminium Alloy,
Outdoor PTZ Thermal Imaging Camera
Long range 24-hours monitoring.
Delicate and smooth images．
360 degree of Omni-directional Pan-Tilt
Super-strong aluminum alloy, IP67 ingress
Effective in all environments
Lightweight design: weight ≤ 10kg
Support full-screen point, line, surface accurate temperature measurement function, based on the black body radiation law calculation of each frame of the front-end raw data method, short response time, no delay, alarm threshold and alarm strategy can be set remotely;
Pitch: -90°to+90°, horizontal 360°continuous rotation, full coverage of 720° three-dimensional space.
Horizontal: 0.01°/s to 100°/s; pitch: 0.01°/s to 80°/s, high speed start/stop, focal speed adaptive, accurate target positioning.
Petrochemical, industrial manufacturing;
Warehousing and logistics;
Factory parks, coal mines and steel plants.
Online detection and monitoring of temperature measurement;
Security, and fire warning of charging facilities.
|Thermal imaging Camera||
1.Detector: The sixth generation uncooled focal plane array VOx detector
2. Wavelength: 8～14μm
3. NETD:40mK(@25℃ F1.0)
4. Lens: 50mm
5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment
6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white
7.Image parameters: AGC automatic gain control, brightness, contrast
8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram
9. Ranging ruler: support for range finding ruler
10.Dead pixel correction: support the function of dead pixel correction
11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters
12.Strong light protection: support anti-sun damage
13.Non-uniformity correction: automatic/hand
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS
2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON)
3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom.
4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic.
5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light
6.Support electronic fog penetration and optical fog penetration
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles
2.Laser angle: 3°~65° switchable
3.Laser distance: 300m
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
3.Video encoding: H.265/H.264/MJPEG,multi-stream support
4.Video code rate:32Kbps～16Mbps
5.Audio encoding:G.711A/ G.711U/G726
6.Image flip: left and right / up and down / diagonal
7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings
1. Temperature measurement range: -20℃～+120℃, -20℃～+550℃
2. Temperature measurement error: ±2°C (±2% of range optional)
3. Temperature measurement method: full-screen temperature information return, point, line, surface, irregular area, simultaneous detection of 16 indivual
4. Accuracy correction: Support temperature measurement parameter correction settings, including temperature correction, emissivity, atmospheric transmission
Temperature measurement function, humidity
5. Over-temperature alarm: sound and light alarm when alarming, reserved switch alarm output, manual/automatic connection
Active fire extinguishing system and broadcasting system
6. Alarm log: record the temperature data of each object in real time, automatically generate change trend curve, trigger
When an alarm occurs, temperature data, image snapshots and videos can be automatically stored, and relevant logs can be established and recorded.
Real-time video storage and playback (with KV1000 professional software, support optional)
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking
2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function
3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking
4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion
5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function
6.Alarm management: support for alarm capture and upload
1. Distance measurement: support passive distance measurement; support optional laser distance measurement.
2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization.
3. Support alarm linkage fire fighting device.
4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set).
5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc.
6. Support disconnection renewal.
7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state.
8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade.
9. Key frame setting: support key frame interval 100 levels adjustable.
10. Configuration file: support configuration file import and export function.
11. Web access: support WEB full function configuration, remote online upgrade.
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption.
2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90°
3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material.
4. Window glass: infrared/visible high efficiency optical glass, clean film coating.
5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion.
6. Wiper: support intelligent automatic wiper
7. Defrost: visible window defrost
8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions
9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan
10. Support 3D frame selection zoom
11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning
12. Zero point correction: support northward zero point remote correction function
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface.
2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols.
3. Development interface: Support HP-SDK secondary development
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
1. Support illegal access alarm: the number of illegal access, lock time can be set.
2. Support three levels of user rights management, administrator, operator and normal user.
3. Security mode: authorized user name and password, support IP whitelist and blacklist, MAC whitelist and blacklist.
4. User mis-login lockout
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
2. Rated power consumption: ≤40W
3. Peak power consumption: ≤60W
1. Working temperature: -40℃～60℃
2. Working humidity: ≤95%
3. Protection grade: IP67
4. Anti-salt spray: no change in surface after 96 hours of continuous spraying at pH 6.5~7.2
5. Electromagnetic compatibility: anti-surge 6KV, anti-static 8KV contact / 15KV air
1. Weight: ≤10kg
2. Size: 312mm×200mm×296mm (L×W×H)
3. Mounting: Front / side / wall / hanging / vehicle / tripod pro-rack
