Product Details:
|
NETD: | 50mK | Lens Control: | Motor Zoom, Focus (optional Auto Focus) |
---|---|---|---|
Sensor: | Uncooled UFPA Sensor | Resolution: | 336*256/640*512 |
Frame Rate: | 25hz | Image Process: | DDE |
Highlight: | long range surveillance camera,cctv security cameras |

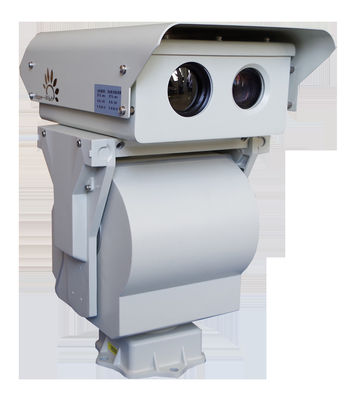

Long range Forest Fire Detection and Alarm Thermal Camera with intelligent system
TTVC series dual channel hot spots intelligent alarm thermal camera
Feature
Application
Forest fire prevention, animal husbandry and grassland fire, coal mine fire prevention, large granary fire automatic remote moitoring.
Technical specification
Model | TTVC4105-1930 | TTVC4307-1930 | TTVC4510-2030 | TTVC4515-2050 | TTVC4515-2075 |
Detection*(for 2mX2m hot spots) | 2000m | 3000m | 4000m | 6000m | 6000m |
Sensor | 5th generation MEMS UFPA VOx sensor | ||||
Resolution | 336*256 pixel(640*512 optional) | ||||
Spectral response | 7.5~14μm | ||||
NETD | 50mK(@25℃F1.0) | ||||
Focal length | 50mm | 25-75mm, 3X continuous zoom | 21-105mm,5X continuous zoom | 31-155mm,5X continuous zoom | 31-155mm, 5X continuous zoom |
FOV | 6.5°*4.8° | 13°*9.7°~4.3°*3.2° | 18°*13.5°~3.4°*2.7° | 11.25°*8.5°~2.25°*1.7° | 11.25°*8.5°~2.25°*1.7° |
IFOV | 0.34mrad | 0.22~0.68mrad | 0.17~0.85mrad | 0.11~0.55mrad | 0.11~0.55mrad |
Lens control | Motor zoom, focus (optional auto focus) | ||||
CCD |
ü 1/2.8''CMOS; ü 0.01lux low illuminate color to BW; ü 2.1megapixel, auto ICR switch; ü H264/MPEG4/MIPEG video standard, support dual stream; ü Video data rate:32Kbps~16Mbps,60hz,30 frame frequency /s . |
1/1.8'' CMOS ; 0.0002lux star light level super low illuminate color to BW ; 2 mega pixel,1920X1080,integral ICR filter ; H.264/MPEG4/MIPEG video format, support dual stream ; Video data rate :32Kbps~16Mbps,60Hz30 frame/s. ABF auto adjustment. |
|||
Lens |
ü 4.3~129mm ü F1.6~F5.0 ü FOV(H)65°~2.3° ü Mega pixel, motorized variable, 1s auto focus. |
ü 12~320mm ü F2.0~360 ü FOV(H)4.1°~1.1° ü M.O.D : 1.5m ü Megapixel HD Infrared correction ü Electric variable DC8~12V, ü auto iris |
15~528mm F3.0~360 FOV(H)23°~0.74° M.O.D. : 4m Wide spectral design Electric variable,DC8-12V,auto iris
|
30~750mm F4.6~360 FOV(H)11°~0.5° M.O.D.:2.5m 105mm aperture ; Electric variable,DC8-12V,auto iris, DC5V accurate preset,zoom / focusfeedback |
|
Image processing | 1. Stable operation temperature without TEC, starting time less than 4 seconds | ||||
2. SDE digital image processing | |||||
3. 10 pseudo color and B/W, B/W inverse | |||||
4. Brightness, contrast, gamma correction | |||||
5. 2X digital amplification | |||||
6. Optional penetrate fog function | |||||
Hot target intelligent alarm | 1. 255 adjustable alarm threshold values | ||||
2. Adjustable monitoring area, auto detection of target size | |||||
3. 1-16 alarm targets, auto selection of the most obvious one | |||||
4. Two types of alarm: screen display and audible alarm | |||||
5. Less than 0.01s alarm response ensures no omission | |||||
6. All parameters can be modified via OSD menu, universally adaptable | |||||
7. Optional IP network coding transmission, and provide free platform and SDK | |||||
Housing | 1. Material: integral aluminum alloy housing, stainless steel, anti strong wind ; | ||||
2. Structure: Integral double window | |||||
3. Window glass: 4mm optical glass ,transmission>98% ; | |||||
4. Surface coating: PTA three-proofing coatings , | |||||
5. Protection:IP66 sealing rate, anti sea water corrosion(optional); | |||||
6. Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ; | |||||
7. Interface : waterproof aviation connector ; | |||||
PT | 1. Load: 30kg | 50kg | |||
2. Rotation: pan: 0~360°, tilt: -75°~+45° | pan: 0~360°, tilt: -45°~+45° | ||||
3. Rotation speed: Pan:0.1~60°/s, tilt: 0.1~30°/s | Pan:0.1~30°/s, tilt: 0.1~15°/s | ||||
4. 80 preset, 256 can be extended. Intelligent functions such as cruise, the apple peel scanning | |||||
5, windproof, anti-shake | |||||
6, automatic locking function, produce the alarm when without background software command | |||||
7, the OSD menu function, location, real-time display | |||||
8, can real-time back azimuth information, linkage with GIS map location | |||||
Main board | 1. 32 bit ARM embedded MCU control circuit ; | ||||
2.DC3V,5V,12V,24V multiple power supply to ensure stable operation of camera ,detector ,lens and PT ; | |||||
3. 5 groups of 12bits AD sampling hole, built-in synchronous algorithm data ,which could ensure focal length and PT rotation synchronously follow up with presets ; | |||||
4.Reserved video processing interface , could extend lens auto focus function; | |||||
5.Optional: Intelligent 3D positioning function. Control PT rotation and Lens zoom functions . | |||||
Interface | 1. RS-422(PELCO D protocol, Baud rate 2400bps), PAL/NTSC, HD network, switch alarm | ||||
2.Optional DVE102 intelligent hybrid encoder, RJ45 network interface communication (including video and azimuth of return data, PTZ control, alarm data transmission) | |||||
3. AC24V(DC24V optional) | |||||
4. Military level waterproof connector | |||||
Protocols | 1. Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP protocols ; | ||||
2. Support Onvif 2.0 | |||||
3. Support Pelco-D Pelco-P, baud rate:2400,4800,9600,19200 optional ; | |||||
Power supply | AC24V / DC24V ±10 %,50HZ, AC220V→AC24V adapter . | ||||
Environment indicator | 1. One integral aluminum alloy housing. IP66 ingress protection | ||||
2. Operational temp.: -25°~55° (-40° optional) | |||||
3. Storage temp.: -35°~75° |
* The detection distance is related to the object and environmentetc. Please contact with us for further information.
