Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement

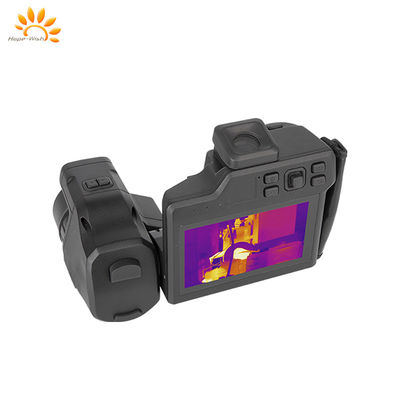

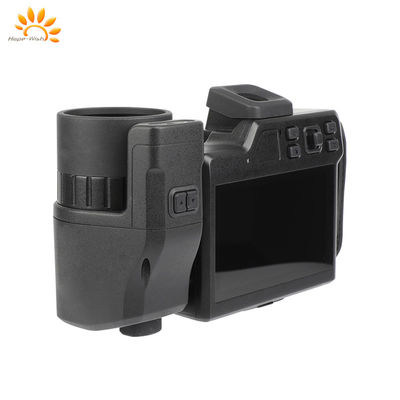

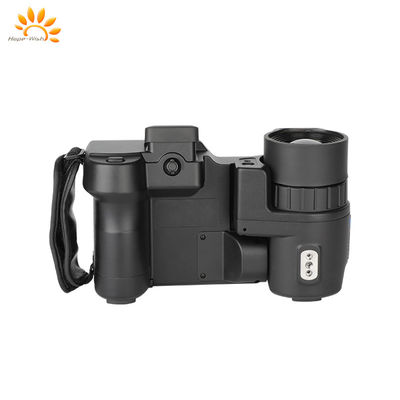

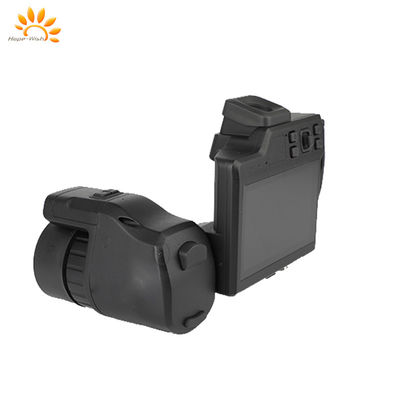

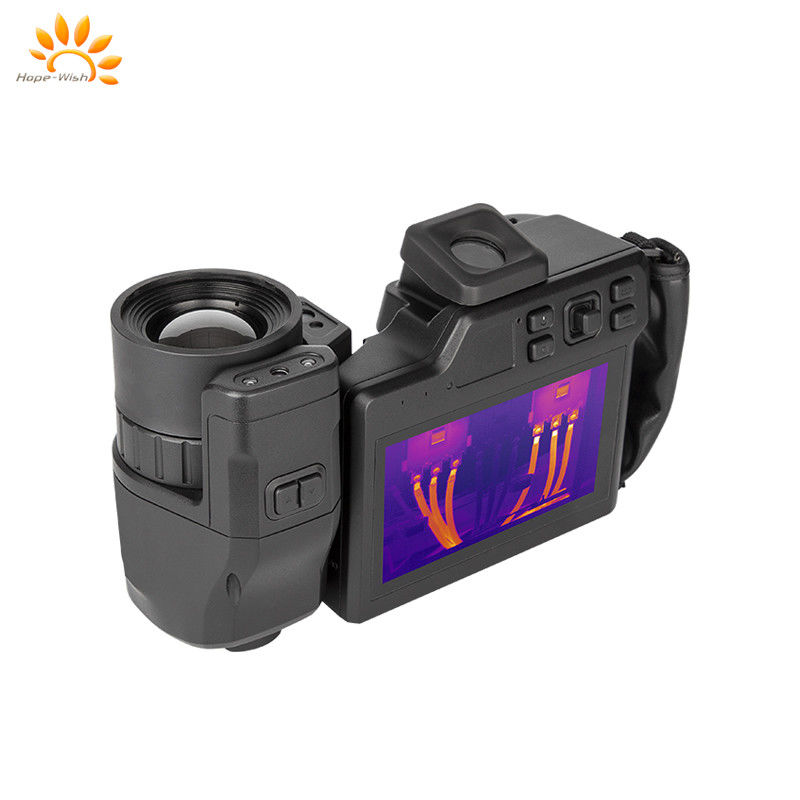

Large Image : Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement

Product Details:

Place of Origin:	China
Brand Name:	Hope-Wish
Certification:	CE, FCC, ROHS, ISO9001
Model Number:	HP-DL802-M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	15-30
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram

Contact Now

Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement

Description

Weight:	500g	Type:	Monocular
Effective Visual Distance:	700-1600m	Color:	Black
Netd:	<60mK@300k(F#1.0)	Fov:	24° X 18°
Highlight:	Power Industry Portable Infrared Camera , Portable Infrared Camera 1600m , Thermal Imaging Camera Temperature Measurement

Key Benefits:

High precision resolution, 1024×768 pixel detector, can get a super pixel to 2048×1536 pixel.
180° rotating concentrator and 5-inch high-brightness and high-resolution touch-screen LCD display can place any target within a comfortable viewing angle.
With function of compass, laser ranging, GPS Bluetooth, Wi-Fi transmission, and 4G

Application
Suitable for power industry, scientific research, building diagnosis, electrical and mechanical testing, railway, steel and petrochemical, automation applications and etc..

Technical specification:

Items		HP-DL802-M
Detector	Type	Uncooled FPA
Detector	Resolution	1024×768
Image	FOV	28.7°×21.7°
	Spatial resolution	0.49mrad
	NETD	0.02℃@30℃
	Frame rate	60Hz
	Focal	Automatic/manual focus/electric focus/touch screen
	Spectral range	7.5-14um
	Visual camera built-in	5 M pixels, CMOS module, built-in LED fill light
	Zoom	1～40 times continuous digital zoom
	Super pixel	2048×1536
Image display	LCD display	5-inch color LCD capacitive touch screen
	Viewfinder	HD 0.5" color OLED
	Image display	infrared or visible light full-screen switching, picture-in-picture, thermal superposition, dual-band fusion
	Palette	11 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.)
	Image Processing	Automatic/manual adjustment of contrast and brightness, automatic enhancement mode
Measurement	Temperature measurement range	-40℃- +650℃,can be extended to 1500℃ and 2000℃
	Precision	±1℃ or ±1%(0~150℃) ±2℃ or ±2%(within the range)
	Temperature measurement correction	Automatic / manual
	Measurement mode	Real-time 10 movable points, 5 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)


	Setting	Date/time, temperature unit ℃/℉/K, language, contrast/brightness, LCD backlight
	Emissivity correction	The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or the emissivity can be corrected through a predefined material emissivity meter
	Background temperature correction	Automatic, according to the input background temperature
	Atmospheric window correction	Yes, adjustable
	Atmospheric transmittance correction	Automatic, according to the input target distance, relative humidity, ambient temperature
Storage	Storage card	Built-in 128G memory and external 32G SD card (expandable)
	Storage method	Manual/automatic photo or video
	Infrared image format	JPEG and DLV format, with infrared raw measurement data image; MPEG4 format, video recording.
	Visible light image format	JPEG / DLV /MPEG4 format
	Voice notes	60 seconds of voice recording, stored along with the image (built-in microphone, can be recorded and played via Bluetooth)
	Text annotation	Yes, can be predefined
	Sketch Notes	Yes
	Task mode	with task mode shooting, automatic naming
Other settings	Laser	Laser ranging
	GPS	Yes
	Electronic compass	Yes
	Microphone	Yes
	Buzzer	Yes
	Fill light	2 LED
Power system	Battery Type	Lithium battery, rechargeable
	Battery working time	3 hours continuous work
	Charging type	Smart charger charging or random (AC power adapter or 12V in-car power supply) charging
	Power saving mode	Automatic sleep and shutdown
Environment	Working temp.	-15℃-+50℃
	Storage temp.	-40℃-+70℃
	Humidity	≦95％(non-condensing)
	Protection grade	IP54
	Shock resistance	30G,IEC68-2-27
	Vibration resistance	2G,IEC68-2-6
	EMC	GB/T 18268.1-2010
Physical characteristic	Weight	≤2Kg
	Dimension	180mm×145mm×150mm
	Tripod	1/4″-20-UNC
Interface	Power supply	Yes ,DC 12V
	memory card slot	SD card holder
	USB	Yes, Mini-USB Type C, can transmit raw data video stream for real-time analysis
	Wifi	Yes
	Bluetooth	Yes
	Video output	HDMI
