Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution

Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution
Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution

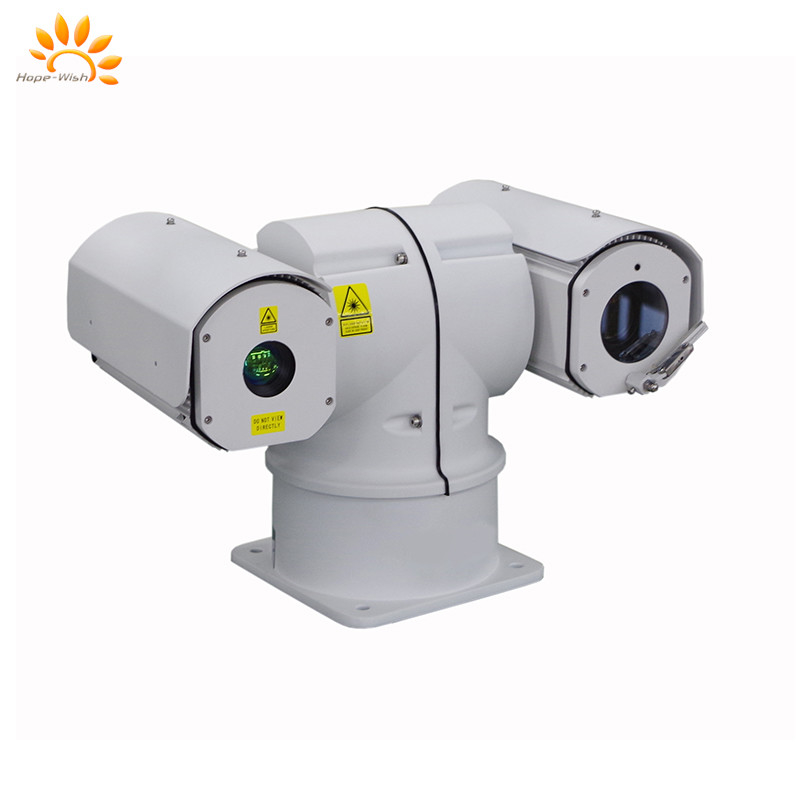

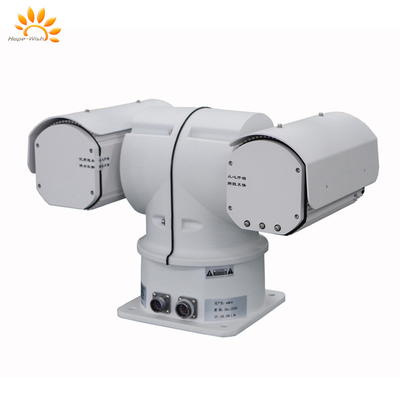

Large Image :  Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-BRC1920
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution

Description
Video Format: H.264/MPEG4/MIPEG Consumption: 10W,808nm , NIR
Onvif: Support Preset: 80 (245 For Option)
Fog Penetration: AFR, Optional For Fog Filter Material: Integral Aluminum Alloy Housing
Resolution: 1920x1080 Feature: IP66
High Light:

Aluminum Alloy Infrared Thermal Imaging Camera

,

50kg Long Range Infrared Camera

,

1920x1080 Resolution Long Range Ir Camera

Product Description:

BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise gearing, 2 megapixel HD lens, digital decoder, CCD and CU. The mechanical design of PTZ is simple and stable.



BRC19 camera could rotate to the proposed position quickly and accurately. The camera has 128 preset, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.

  • Infrared Reverse Camera: This feature allows the camera to capture clear and sharp images even in complete darkness, thanks to its advanced infrared technology.
  • Infrared Night Vision: With this feature, the camera can detect and record movements even in low light conditions, ensuring round-the-clock surveillance.
  • Infrared Night Vision Camera: This feature combines the power of infrared technology and night vision capabilities, making it possible to capture high-quality images and videos in complete darkness.
  • Long Range Vision: The camera is equipped with a powerful lens and high-resolution sensor that can capture images and videos from a long distance, ensuring maximum coverage.
  • IP66: This camera is designed to withstand harsh weather conditions, making it ideal for outdoor use. With its IP66 rating, it is dust-tight and protected against powerful jets of water.
  • Load Duty: The camera can handle up to 50kg of weight, making it suitable for heavy-duty use and ensuring its durability.
  • Aviation Water-Proof Connector: This feature ensures a secure and waterproof connection for the camera, making it suitable for outdoor use and protecting it from any water damage.
  • Ir Laser: The camera comes equipped with an 808nm Ir Laser, which enhances its night vision capabilities and allows it to capture clear images and videos in low light conditions.

Features:

  • 50°laser source, max illumination distance 300~420m.
  • Unique DSS digital illumination angle control, 0.1°minimum zooming accompany camera.
  • GHT-II super homogenizing ensures a better imaging effect.
  • Independent photos which ensures the synchronization of B&W conversion and laser source turning on.
  • Built-in intelligent delay to avoid the influence of car light.
  • One integral aluminum alloy housing, water proof and dustproof, IP66 ingress protection.


Technical Parameters:

Model HP-BRC1920
Detection Day: 700
  Night: 300m
Sensor 1/2.8'' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch
Encoding Video compression: H.264, code stream 32k~16Mbps,support dual stream, the heart, smart restructuring, electronic shutter, white balance, 3D DNR, DWDR, automatic exposure, support SD card, motion detection, mask alarm
Image setting Lightness, contrast radio, saturation
Lens

4.7~94mm,20 optical zoom

F1.6~F3.5

FOV 61.4°~2.9°
Min.Illumination 0.005lux B/W0.05lux Color/
Consumption 5W,808nm ,NIR
Laser lens 30mm F1.0 Fast lens,GHT-II homogenizing
Laser angle 2°~50°
Angle control DSS digital illumination control,30ms fast track response, min 0.1° illumination zooming, manual/automatic
Optical axis aiming 0.01°SLM automatic axis automatic aiming and locking ,reserved external interface, maintaining without take out the case
Pan rotation 0°~360° continuously
Tilt rotation -90°~+90°
Rotation speed Pan: 0°~100°/s,Tilt: 0°~80°/s
Preset 128
Line scan 3 path(User could set up the starting point, destination and scanning speed)
Patrol 6 path(each path have 16 point, staying time is adjustable)
Customized function Customizable privacy shade, 3D box chosen magnification
Interface RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP
Compatibility Support ONVIF,GB/T28181
Heat/demisting/ wiper Yes
Laser switch Auto/manual
Ingress protection IP66,anti-lighting,anti surge
Operational temp. -35~55℃
Power supply AC24V/2.5A,DC12V/3.5A, common≤40W,peak≤60W
Weight 7kg

Applications:

City security, oilfield monitoring, lake&river monitoring, expressway&railway monitoring, seaport&airport monitoring.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Aluminum Alloy Long Range Infrared Camera With 50kg Load Duty And 1920x1080 Resolution 1

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Hope-Wish.
  • Q: What is the model number of this product?
  • A: The model number of this product is HP-.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What type of camera is this?
  • A: This is a long range infrared camera.
  • Q: What is the maximum distance this camera can capture images?
  • A: The maximum distance this camera can capture images is determined by its specific model and settings.
