25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range

25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range
25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range

Large Image :  25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-DRC1930
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range

Description
Lens: 25mm Load Duty: 50kg
Ir Laser: 808nm Onvif: Support
Ptz: Load Duty:30kg Preset: 80 (245 For Option)
Dimensions: 200mm X 100mm X 100mm Video Format: H.264/MPEG4/MIPEG
High Light:

H.264 Infrared Camera Long Distance Range

,

25mm Lens Long Range Infrared Camera

,

MIPEG Long Range Infrared Camera

Product Description:

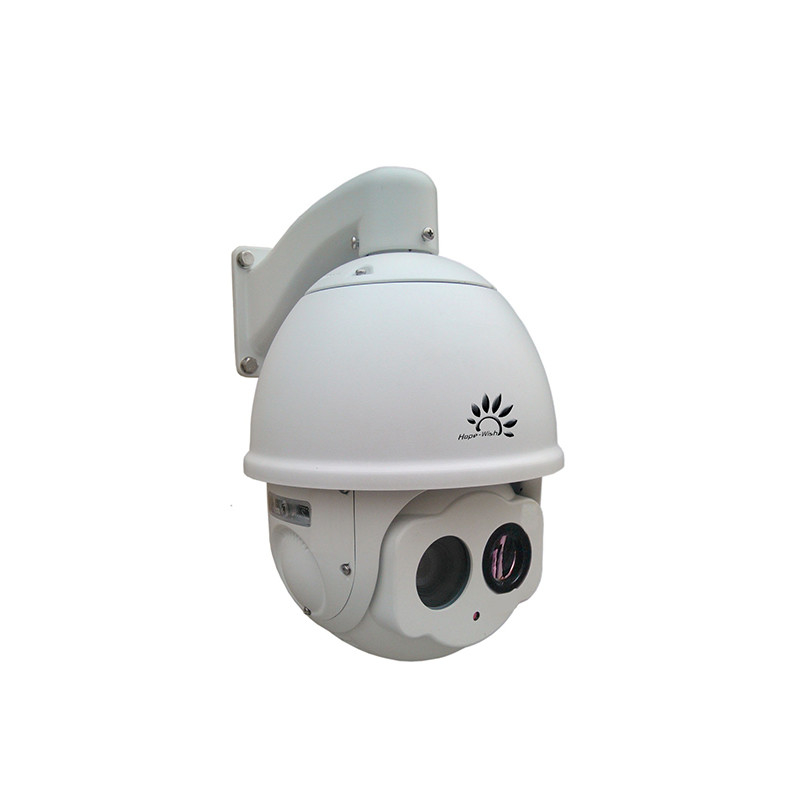

DRC19 series high speed laser night vision dome camera, 2.1 megapixel, can monitor a region of 300m~400M clearly at night. Consist of NIR laser illumination, PT, precise gearing, HD lens, digital encoder, CCD and MCU. The mechanical design of PTZ is simple and stable. It could rotate to the proposed position quickly and accurately.



The camera has 128 presets, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.



Features:

  • 50°laser illuminator, 2.1 MP HD CMOS, max illumination distance 300m-420m.
  • Unique DSS laser angle control, min 0.1°sync zoom accompany camera, support manual zoom and sync zoom.
  • Unique GHT laser homogenizing technology.
  • Independent photo-resistor switch make sure the camera color mode and laser on/off at the same time. Built-in intelligent delay to avoid the influence of car light.
  • All metal cooling housing, CGS cooling system and double sun block, night vision module cycle air-cooling.
  • SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode.
  • Multi-bearing structure.
  • Support online software update.
  • Electric motor drive, reaction quick, rotation smoothly, tolerance less than 0.1°.
  • Support 3D intelligent positioning function, click tracking enlarge.
  • Address and protocol DIP switch is on the side.
  • Weatherproof rate IP66, anti-rain, anti-dust, TVS4000V anti-lightin.


Technical Parameters:

Model HP-DRC1930
Detection Day:800m;
  Night: 400m
CCD 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode
Video encoding Video compression H.264, code stream 32k~8Mbps, Support dual-stream,the heart, smart restructuring,electronic shutter, white balance, 3D DNR, DWDR,automatic exposure, support SD card, motion detection, mask alarm
Focal length

4.3~129mm,30 optical zoom

F1.6~F5.0

FOV 65°~2.3°
Min. illumination 0.05lux /0.005lux
Consumption 5W, 808nm,NIR
Laser lens 30mm F1.0 Fast lens, GHT laser homogenizing technology
Laser angle 2°~50°
Angle control DSS laser angle control technical, 30ms fast track response,min 0.1°sync zoom accompany camera, support manual zoom and sync zoom.
Optical axis aiming 0.01°SLM optical axis aiming and locking
Laser on/off Auto/manual
PTZ Pan: 360°continuously, Tilt: -90°~+5°(Support auto reverse)
Rotation speed Pan: 0.01°~200°/s, Tilt: 0.01°~120°/s, max speed of calling preset 250°/s, rotation speed vary automatically according to the focal length
Preset 255, support memory record after power breakdown, scan, keep watch
Interface and protocol RJ45, 10M/100M Ethernet, TCP/IP, RTP/RTCP, HTTP etc protocol
Compatibility Support ONVIF,GB/T28181
Customized function Customizable privacy shade, 3D box chosen magnification
Online update Support online update
Baud rate 2400/4800/9600/19200bps
Weatherproof IP66, TVS4000V anti-lighting, anti-wave
Operational temp. -30℃~60℃, <90%RH non-condensing
Power supply DC12V/4A, common≤40W,peak≤60W
Dimension Φ230(mm)*348(mm)
Weight 5kg


Applications:

City Safety, stadium/plaza/scenic spot monitoring, oilfield safety, lake&river monitoring, freeway&railway security, seaport&airport security.


Customization:

Our Long Range Infrared Camera is equipped with a high-quality Infrared Camera Module, providing superior image quality and enhanced visibility even in low light conditions.
Infrared Camera Lighting

With its advanced Infrared Camera Lighting, our camera can capture clear and crisp images in complete darkness, making it perfect for surveillance and security purposes.

EO IR Camera

In addition to its Infrared capabilities, our camera also features an EO IR Camera, allowing for both thermal and visible light imaging for improved accuracy and detection.

Customization Options

At Hope-Wish, we offer a range of customization options for our Long Range Infrared Camera to meet your specific needs and requirements. From different lens options to various connectivity options, we can tailor our camera to fit your unique project needs. Contact us today to learn more about our customization services.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
25mm Lens Long Range Infrared Camera H.264 Infrared Camera Long Distance Range 1

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Hope-Wish.
  • Q: What is the model number of this product?
  • A: The model number of this product is HP-.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: What is the maximum range of this camera?
  • A: The maximum range of this camera is 500 meters.
  • Q: Is this camera weatherproof?
  • A: Yes, this camera is weatherproof and can withstand harsh outdoor conditions.
