Product Details:
|
| Spectral Range: | 3.5 - 5.0 μm | Sensor: | FPA MCT Detector |
|---|---|---|---|
| Ip Rate: | IP66 Waterproof | Enclosure: | Aluminum Alloy, Sealed; |
| Image Enhancement: | SDE | Technology: | Infrared Thermal |
| Lens Material: | Germanium | Resolution: | 640 X 480 |
| High Light: | Cooled Thermal Camera With Infrared,Aluminum Alloy Cooled Thermal Camera,10km Long Range Thermal Camera Detector |
||
1.8-320mm full HD visible camera, 2 mega pixels CCD, 1-10km detection range in the daytime.
2. 75mm/105mm /155mmthermal camera, 384*288/640*512 resolution, 1-18km detection range at day/night.
3.45mk NETD produces crisp thermal image under all weather conditions.
4. Fog penetration (optional), optical filtering and image
Processing
5.50kg load duty and 360 degree rotation.
6.IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.
The Cooled Thermal Camera is equipped with a powerful Infrared Camera Module that captures and processes thermal images with unparalleled precision and clarity. This advanced module is designed to deliver high-quality images even in the most challenging environments.
With a resolution of 640 X 480, this camera offers exceptional clarity and detail in thermal imaging. This high resolution ensures that no detail is missed, making it an ideal choice for critical applications where accuracy is crucial.
The IP66 waterproof rating of the Cooled Thermal Camera makes it suitable for outdoor use, even in harsh weather conditions. This ensures that the camera is protected against dust, water, and other environmental elements, making it a reliable choice for long-term use.
The Cooled Thermal Camera boasts a low Netd value of 20mK(@25℃ F2.0), which refers to the minimum detectable temperature difference. This means that the camera can detect even the slightest temperature differences with high accuracy, making it an ideal choice for various applications, including security and surveillance.
The Cooled Thermal Camera utilizes advanced cooled thermal technology to provide accurate and reliable thermal imaging. This technology ensures that the camera operates at a stable temperature, resulting in high-quality images with minimal noise and distortion.
The SDE (Super Digital Enhancement) feature of the Cooled Thermal Camera enhances the quality of the thermal images by reducing noise and improving contrast. This results in sharper and clearer images, making it easier to detect potential threats and anomalies.
In conclusion, the Cooled Thermal Camera is a state-of-the-art product that offers exceptional performance and reliability. With its advanced features, including an Infrared Camera Module, high resolution, low Netd, and image enhancement, this camera is an ideal choice for a wide range of applications. Upgrade your security and surveillance system with the Cooled Thermal Camera and experience the power of thermal imaging technology.

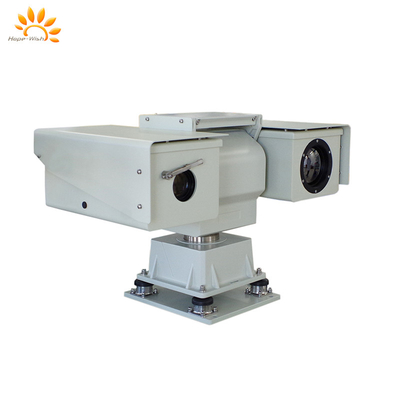

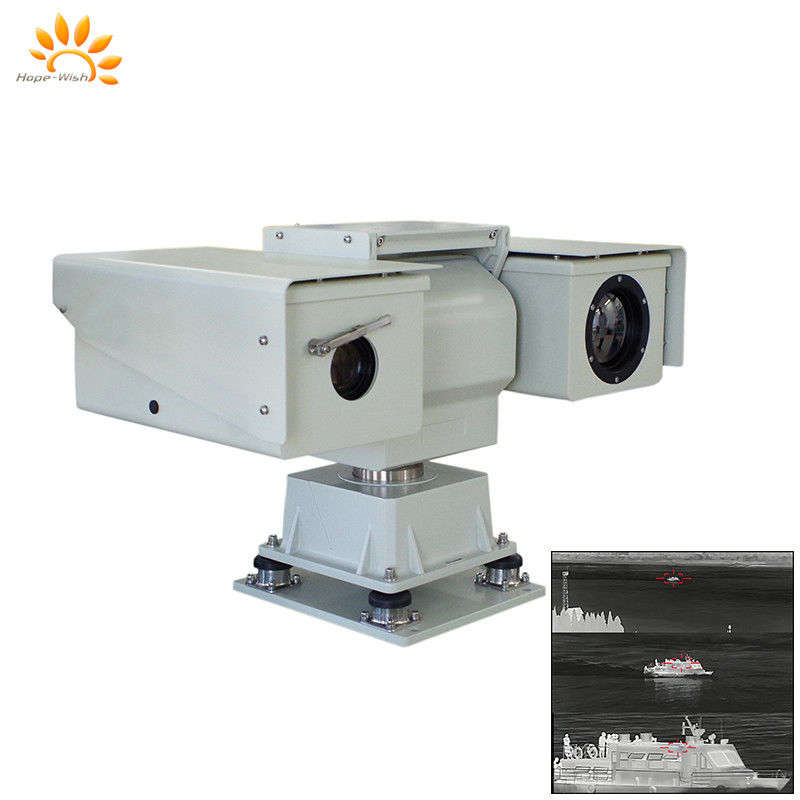

HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and
384*288/640*512 uncooled thermal camera with large caliber.
In combination with 360-degree PT, the camera is capable of
conducting 24 hours real-time monitoring within 1km-10km.
| Model | HP-HTVC6511-2132 |
| Detection | Vehicle: 8.6Km; Human:3.4km |
| Identification | Vehicle: 2.4km; Human: 900m |
| Thermal sensor |
VOx uncooled detector, 640*512 resolution 7.5um-14um spectral response, 45mk NETD |
| Thermal lens | 21mm~105mm |
| 5X continuous zoom, auto focus | |
| 8X digital zoom | |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Enhancement |
1.Protection from strong light, Sunburn protection 2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature 3. Scene mode: support multi-configuration scene, adapt to different environment application |
| Intelligent Analysic |
1.Intrusion detection; 2.Fire Alarm/Hot Alarm 3. Ranging Scale; 4.Support Auto Track (together with software) |
| Visible Camera sensor | 1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD | |
| 2.1 MP resolution | |
| Automatic ICR switch | |
| H.264/MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible Camera lens | 8mm~320mm |
| 40X zoom | |
| Auto focus | |
| 2MP full HD resolution | |
| Housing | Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Structure:Integrated multi-window design | |
| Surface coating:PTA three-resistance coating, Seawater corrosion resistance | |
| Built-in thermostat, design of thermal equilibrium | |
| Interface:Aviation waterproof plug | |
| PTZ | Load:30kg/50kg |
| Pan: 0~360°, Tilt: +45°～-45° | |
| Speed:Pan: 0.01～30°/S, Tilt: 0.01～15°/S | |
| Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function | |
| Interface | RJ45 Interface |
| Video format | H.264, Dual video output |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
| Support ONVIF2.0 | |
| Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional | |
| Power supply | AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
| Environment | Operating temperature:-35℃～+60℃(-40℃ optional)；Storage temperature:-40℃～+65℃ |
| Humidity:<90% | |
| Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
| Ingress protection:IP66 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Cooled Thermal Camera is carefully packaged to ensure that it arrives to you in perfect condition. Each camera is placed in a sturdy box with foam padding to protect it during transit. The box is then sealed and labeled with the necessary shipping information.
We offer both domestic and international shipping options. For domestic orders, we use trusted carriers such as UPS, FedEx, and USPS. International orders are shipped via DHL or USPS International. Customers are responsible for any customs fees or duties.
Orders are typically shipped within 1-2 business days of purchase. You will receive a tracking number via email once your order has been shipped. Delivery times may vary depending on your location and selected shipping method.
If you have any questions or concerns about your order, please don't hesitate to contact our customer service team. We want to ensure that your Cooled Thermal Camera arrives to you quickly and safely!
