Product Details:
|
| Image Enhancement: | SDE | Menu: | OSD |
|---|---|---|---|
| Field Of View: | 9.2° X 6.9° | Sensor: | FPA MCT Detector |
| Type: | Cooled Thermal | Dimensions: | 160 X 120 X 120 Mm |
| Sensitivity: | <50 MK | Netd: | 20mK(@25℃ F2.0) |
| High Light: | SDE Infrared Car Camera,Sealed Enclosure Infrared Car Camera,IP66 Car Cooled Thermal Camera |
||

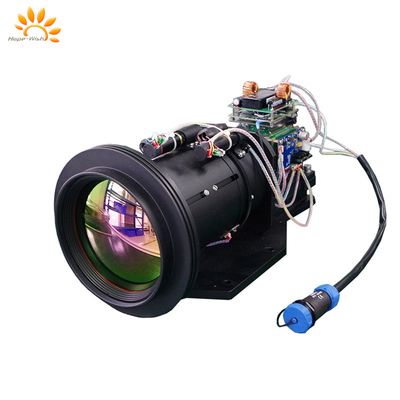

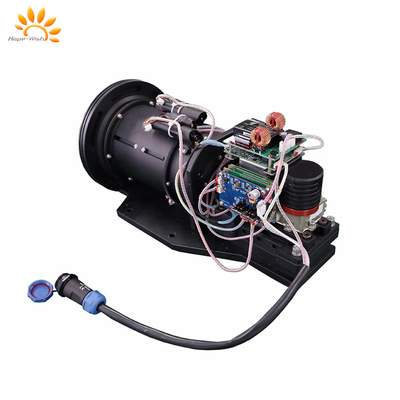

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
The Cooled Thermal Camera is a perfect fit for infrared surveillance cameras, providing clear and detailed thermal images for security and monitoring purposes. It is suitable for use in various industries such as military, law enforcement, transportation, and industrial facilities.
The Cooled Thermal Camera is also available as an infrared camera module, allowing for easy integration into existing surveillance systems. It can be used as a standalone camera or integrated with other cameras for comprehensive surveillance coverage.
The Cooled Thermal Camera is a premium choice for those in need of high-performance and reliable thermal imaging. Its Germanium lens material, enhanced sensitivity, durable enclosure, and advanced image enhancement technology make it a top-of-the-line infrared surveillance camera. Its menu control through OSD and availability as a camera module provide flexibility and convenience for various surveillance applications. Choose the Cooled Thermal Camera for top-quality thermal imaging and reliable surveillance.
|
Model |
HP-CTC63066 |
|
Detect distance |
Tank :19500m Human :13500m |
|
Identification distance |
Tank:11000m Human:6300m |
|
Detector |
FPA MCT detector |
|
Cooling |
Stirling cryocooler |
|
Resolution |
640×512 |
|
Pixel size |
15μm |
|
Spectral range |
3.7～4.8μm MWIR |
|
LensNETD |
20mK(@25℃) |
|
30～660mm continuous zoom F4. |
|
|
Optical axis stability |
1.2mrad |
|
Image processing |
．3CAM high-precision optomechanical design ．Image enhancement: SDE; ．Color: White hot/Black hot; ．Brightness and contrast: AGC, adjustable; ．Digital zoom: 2X, 4X ．Cross: display ．Correction: Shutter/Background |
|
Lens control |
Motorized zoom, auto focus |
|
Environmental indicators |
．Enclosure: aluminum alloy, sealed; ．Working temp: -40℃～+60℃ ．Storage temp:-45℃～+70℃ ．Ingress protection: IP66 ．Power consumption: 23W(normal), 30W(peak) |
|
Interface |
．Control: RS485/RS232(PELCO D, baud rate:2400bps/s) ．Menu: OSD ．Video: PAL/NTSC ．Power supply: DC24V ．Connector: waterproof aviation connector |
With a sensitivity of less than 50 MK, our Cooled Thermal Camera is capable of capturing even the slightest temperature differences. This makes it ideal for detecting hidden objects or people in various scenarios, such as security surveillance or search and rescue operations.
The Netd (Noise equivalent temperature difference) of our Cooled Thermal Camera is as low as 20mK, ensuring high accuracy and precision in temperature measurement. This makes it an essential tool for industries such as firefighting, industrial inspection, and medical imaging.
Spectral Range: 3.5 - 5.0 μm
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Cooled Thermal Camera is carefully packaged to ensure safe and secure shipping to our customers. The packaging is designed to protect the product from any potential damages during transportation.
The camera is placed in a sturdy cardboard box, which is then sealed with high-quality packaging tape. The box is lined with foam padding to provide extra protection during shipping.
The camera is also wrapped in a layer of bubble wrap to prevent any scratches or dents during transit. The bubble wrap is then secured with tape to keep the camera in place.
Inside the box, you will find the camera, along with its accessories, such as the lens, battery, and charger, all securely packed in their designated compartments. The box also includes an instruction manual and a warranty card for your convenience.
Once the camera is packaged, it is then shipped using a reputable courier service. We offer both standard and expedited shipping options to ensure timely delivery to our customers.
Our team carefully tracks all shipments to ensure that they reach their destination safely and on time. We also provide a tracking number to our customers so they can monitor the status of their shipment.
At Cooled Thermal Camera, we take great care in packaging and shipping our products to provide our customers with the best experience possible. If you have any questions or concerns regarding the packaging or shipping of our products, please do not hesitate to contact us.
