Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar

Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar
Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar

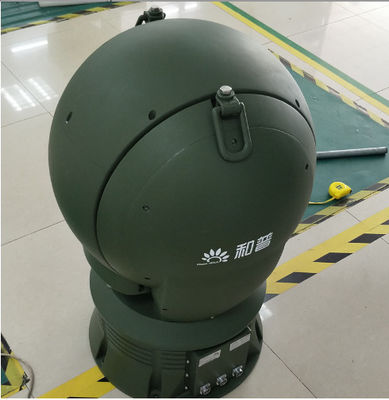

Large Image :  Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: ZTRC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar

Description
NETD: 50mK Spectral Range: 7.5~14μm
Protocol: Support ONVIF2.0 Resolution: 336*256/640*512
Feature: GPS,AUTO TRACKING Technology: PTZ
High Light:

security camera system

,

thermal surveillance camera



Night Vision PTZ Thermal Surveillance System Long Range Camera Link With Radar



Cooled Surveillance Auto Tracking Camera is a series of camera specially designed for long range day and night surveillance. it can continuous monitoring day and night. at night adopt the latest cooled imaging detector and continuous zoom lens , with good imaging effect and good stealthiness, avoiding the interference of outside lighting, With IP junction box Convenient for installation and use, easy to connection and operation .



Feature

  1.  Aluminum alloy housing, anti-corrosion paint, anti-seawater corrosion, spherical housing, resisting 33m/s wind.
  2.  Precision positioning.
  3.  Max rotation speed 45°/s, min rotation speed 0.01°/s.
  4.  Pan rotation angle range 0-360°, tilt rotation angle range ±45°.
  5.  ZTRC combines thermal camera, visible camera, NIR laser illuminator, pan tilt , housing and decoder.
  6.  One integral aluminum alloy housing, waterproof, IP66, anti-dust.

Application

Border defense, lake and river monitoring, airport security, city safety, forest fire prevention.



Technical specification

Model ZTRC
Shape

U shape & Dome Shape housing,

Multi-dimensional free-form surface shape resisting 33m/s wind.

Load duty 50 kg
Rotation speed Pan: 0.01°~45°/S; Tilt: 0.01°~45°/S;(optional 200°/S )
PT Pan: 0~360° ; Tilt: -45°~+45°(optional +90 )
Preset 200
PT position back sending 0.01°accuracy , real-time back up
Smart features

1. Automatic Patrol : 8 path, 10 patrol positions/path

2. Automatic homing can be set from 1 to 60 minutes

3. Auto Scan: 1

Interface

1.1 channel 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), 1 AC24V / DC24V,

2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis

3. Military-grade waterproof aviation plug

Protocol

1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols

2. Support ONVIF2.0

3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized

Enhancements Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees
Power supply

AC220V±20%

Turntable rotation power can be controlled in 120W,

maximum power consumption 150W,

stationary machine power 45W, heating 150W

Environmental indicators

1. Working temperature: -40 ℃ ~ + 55 ℃

2. Storage temperature: -40 ℃ ~ + 65 ℃

3. Humidity: <90%

4. Protection: IP66

Weight 115KG( 65kg for vehicle mounted)
Dimension Ф554mm×H705mm
Thermal camera Optional 320X240/640X512 sensor, 25~75mm,21~105mm, 31~155mm,38~190mm,21~210mm, 95/285mm lens
Visible camera Optional 12~320mm,15~500mm,30~750mm,16.7-1000mm, 2 mega pixel CMOS
Laser illuminator Optional 1000m/2000m/3000m/5000m laser illuminator
Tracking optional tracking module, manual, automatic, radar linkage tracking, automatic tracking over the top.
LRF Optional 5km,8km,15km Pulsed laser ranger, 1.57um eye-safe laser range, accuracy 3 m, repetition rate 10 beats / min
GPS Positioning accuracy 10 meters, optional Compass positioning, accuracy 0.001s, detection -148dBm, tracking -165dBm
Electronic compass range 0-360°, precision 1°, Resolution 0.1°

* The detection distance is related to the object and environment etc. Please contact with us for further information.
