High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage

Certification
China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
Customer Reviews
1. catch thieves stealing while reducing the number and cost of guards. 2. we have a super-surveillance camera and see the item clearly at night

—— Christian

I can see if the guards are sleeping. It has a tremendous effect in keeping them awake and doing their job rather than leaving their posts to chat

—— Richard

I'm Online Chat Now

High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage

High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage
High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage

Large Image :  High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: ZTRC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

High Resolution Thermal Surveillance System For 20km Border Security With Radar Linkage

Description
NETD: 50mK Working Temperature: -40 ℃ ~ + 55 ℃
Auto Tracking: Manual, Automatic, Radar Linkage Tracking Resolution: 336*256/640*512
Grade: Military Grade Feature: IP67
High Light:

security camera system

,

thermal surveillance camera



long range thermal surveillance system For 20km Border Security with Radar Linkage

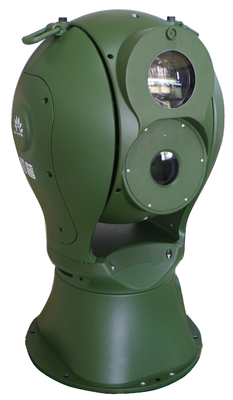

ZTRC Series Multi-spectrum Optical Electronical Platform combines visible camera, NIR laser camera and thermal camera that suit long distance monitoring in total darkness and foggy/rainy environment. It has a U shape & Dome Shape housing and with military quality, the camera is widely applied to coastal, seaport, airport, Forest fire prevention.







Feature

  1.  Aluminum alloy housing, anti-corrosion paint, anti-seawater corrosion, spherical housing, resisting 33m/s wind.
  2. Max rotation speed 45°/s, min rotation speed 0.01°/s.
  3. Pan rotation angle range 0-360°, tilt rotation angle range ±45°.
  4.  High load duty. It could bear 60X visible camera, large caliber thermal camera and high-power laser illuminator, detection range 15 km or more.

Application

Border defense, lake and river monitoring, airport security, city safety, forest fire prevention.



Technical specification

Model ZTRC
Shape

U shape & Dome Shape housing,

Multi-dimensional free-form surface shape resisting 33m/s wind.

Load duty 50 kg
Rotation speed Pan: 0.01°~45°/S; Tilt: 0.01°~45°/S;(optional 200°/S )
PT Pan: 0~360° ; Tilt: -45°~+45°(optional +90 )
Preset 200
PT position back sending 0.01°accuracy , real-time back up
Smart features

1. Automatic Patrol : 8 path, 10 patrol positions/path

2. Automatic homing can be set from 1 to 60 minutes

3. Auto Scan: 1

Interface

1.1 channel 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), 1 AC24V / DC24V,

2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis

3. Military-grade waterproof aviation plug

Protocol

1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols

2. Support ONVIF2.0

3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized

Enhancements Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees
Power supply

AC220V±20%

Turntable rotation power can be controlled in 120W,

maximum power consumption 150W,

stationary machine power 45W, heating 150W

Environmental indicators

1. Working temperature: -40 ℃ ~ + 55 ℃

2. Storage temperature: -40 ℃ ~ + 65 ℃

3. Humidity: <90%

4. Protection: IP66

Weight 115KG( 65kg for vehicle mounted)
Dimension Ф554mm×H705mm
Thermal camera Optional 320X240/640X512 sensor, 25~75mm,21~105mm, 31~155mm,38~190mm,21~210mm, 95/285mm lens
Visible camera Optional 12~320mm,15~500mm,30~750mm,16.7-1000mm, 2 mega pixel CMOS
Laser illuminator Optional 1000m/2000m/3000m/5000m laser illuminator
Tracking optional tracking module, manual, automatic, radar linkage tracking, automatic tracking over the top.
LRF Optional 5km,8km,15km Pulsed laser ranger, 1.57um eye-safe laser range, accuracy 3 m, repetition rate 10 beats / min
GPS Positioning accuracy 10 meters, optional Compass positioning, accuracy 0.001s, detection -148dBm, tracking -165dBm
Electronic compass range 0-360°, precision 1°, Resolution 0.1°

* The detection distance is related to the object and environment etc. Please contact with us for further information.
