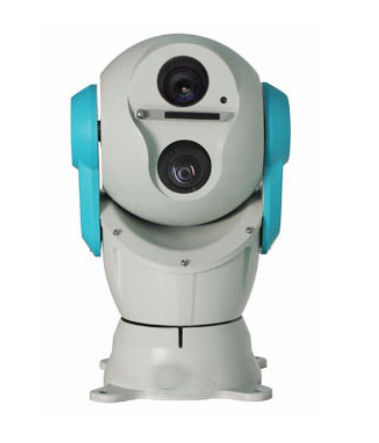

Ptz Dome Dual Thermal Camera 2km Day / Night For Vehicle Mounted Surveillance

Ptz Dome Dual Thermal Camera 2km Day / Night For Vehicle Mounted Surveillance

    • Ptz Dome Dual Thermal Camera 2km Day / Night For Vehicle Mounted Surveillance
    • Ptz Dome Dual Thermal Camera 2km Day / Night For Vehicle Mounted Surveillance
  • Ptz Dome Dual Thermal Camera 2km Day / Night For Vehicle Mounted Surveillance

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: ETVC4104-1920-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Ptz: Duty: 20kg Spectral Range: 7.5~14μm
    Interface: Remote OSD Setting Resolution: 336*256/640*512
    Feature: IP66 Warranty: One Year

    2KM Day / Night Mobile Vehicle Mount PTZ Dome Thermal imaging Camera



    ETVC41 Series Dual Sensor Thermal Dome Camera is designed on the basis of the latest 5th uncooled infrared technology and infrared optical technology. With 336*256 uncooled FPA sensor, advanced digital circuit and image processing technology, the camera produces super crisp thermal image. The camera is capable of detecting targets within 1km~3km and features compact design.





    Feature

    1.  Box camera for daytime surveillance: quick zoom and auto focus.
    2.  50mk NETD ensures crisp thermal image under all weather conditions.
    3.  AS optical design and advanced mechanical design.
    4.  5th generation UFPA and compact design.
    5.  CGS heat dissipation.
    6.  Precise motor ensures camera´s stable operation.
    7.  DIP switch at side makes it easier for address and protocol setting.
    8.  IP66 ingress protection ensures proper functioning under tough weather conditions



    Application
    vehicle mounted surveillance ,police get evidence.City safety, oilfield safety, railway security,



    Technical specification

    Model ETVC4102-1920-S ETVC4104-1920-S
    Detection For car: 1700m For car: 3400m
    For human:720m For human:1400m
    Recognition For car: 420m For car: 840m
    For human: 180m For human: 360m
    Thermal sensor 336X256 pixel, 5 th generation uncooled FPA, 50mk NETD, 7.5-14um spectral range
    Thermal lens 20mmF1.0 40mmF1.0
    Field of view 15.5°X 11.6° 8°X 6°
    Visible CCD 2200000 pixel, 1/4'' 0.01lux color to B/W CCD
    Visible lens 3.4mm ~ 122.4mm, 36 optical zoom, auto focus
    Rotation range Pan: 360° continuously, Tilt: -60° ~ +90°
    Rotation speed Pan: 0.01° ~ 100°/s , Tilt: 0.01° ~ 90°/s, focal length and speed automatically match
    Preset 256, memory record after power breakdown
    Auto mode 6 path protocol/4 path line scan/1 path auto scan
    Path pattern 1 path , total recording time 160sec
    Auto watch Homing time/preset/protocol/line scan
    Menu OSD menu, Chinese and English menu setting
    Compass Compass, after setting the north direction, camera could calculate the other directions
    Wiper Support point and correlation model
    Protocol Auto identify PELCO-D/P and other main protocol
    Baud rate 2400/4800/9600/19200bps
    Weather proof IP66 , TVS1500V anti-lighting , anti-surge
    Operational environment -30~55 ℃ ,< 90%RH non-condensing
    Power supply DC10V-18V
    Weight and size Φ230(mm)×348(mm) , 5kg

    * The detection distance is related to the object and environment etc. Please contact with us for further information.
