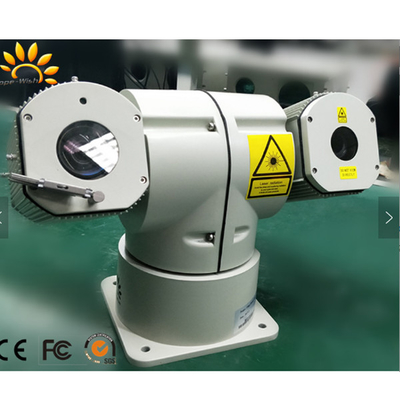

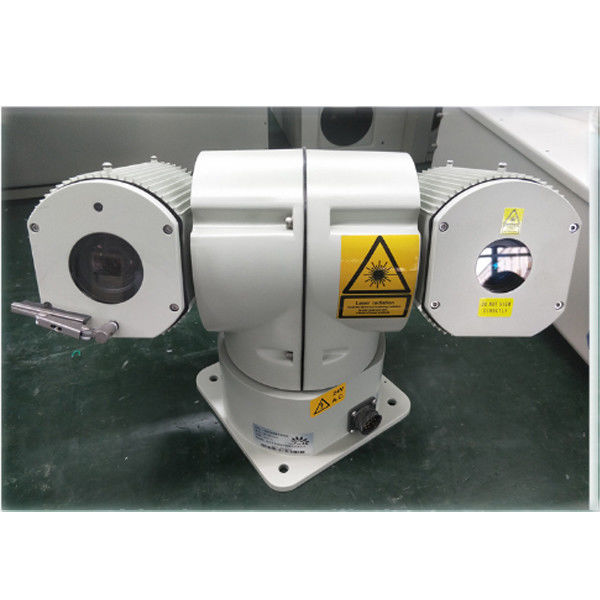

Military Grade PTZ Laser Camera With DSS Digital Illumination Control

Military Grade PTZ Laser Camera With DSS Digital Illumination Control

    • Military Grade PTZ Laser Camera With DSS Digital Illumination Control
    • Military Grade PTZ Laser Camera With DSS Digital Illumination Control
  • Military Grade PTZ Laser Camera With DSS Digital Illumination Control

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: BRC1930

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Type: NIR Laser Feature: IP66
    Sensor: CMOS Laser Switch: Auto/manual
    Angle Control: DSS Digital Illumination Control Pan Rotation: 0°~360° Continuously
    Speed: Pan: 0°~100°/s,Tilt: 0°~80°/s

    Military Grade Long Range Night Vision laser infrared Camera for Vehicle Mounted



    BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise gearing, 2 megapixel HD lens, digital decoder, CCD and CU. The mechanical design of PTZ is simple and stable.



    Feature

    •  50°laser source, max illumination distance 300~420m.
    •  Unique DSS digital illumination angle control, 0.1°minimum zooming accompany camera.
    •  GHT-II super homogenizing ensures a better imaging effect.
    •  Independent photos which ensures the synchronization of B&W conversion and laser source turning on.
    •  Built-in intelligent delay to avoid the influence of car light.
    •  One integral aluminum alloy housing, water proof and dustproof, IP66 ingress protection.

    Application

    City security, oilfield monitoring, lake&river monitoring, expressway&railway monitoring, seaport&airport monitoring.



    Technical specification

    Model BRC1920 BRC1930 BRC1920X BRC1930X
    Detection Day: 700 Day: 800m Day: 700m Day: 800m
      Night: 300m Night: 300m Night: 420m Night: 420m
    Sensor 1/2.8'' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch
    Encoding Video compression: H.264, code stream 32k~16Mbps,support dual stream, the heart, smart restructuring, electronic shutter, white balance, 3D DNR, DWDR, automatic exposure, support SD card, motion detection, mask alarm
    Image setting Lightness, contrast radio, saturation
    Lens

    4.7~94mm,20 optical zoom

    F1.6~F3.5

    4.3~120mm,30 optical zoom

    F1.6~F5.0

    4.7~94mm,20 optical zoom

    F1.6~F3.5

    4.3~129mm,30 optical zoom

    F1.6~F5.0

    FOV 61.4°~2.9° 65°~2.3° 61.4°~2.9° 65°~2.3°
    Min.Illumination 0.005lux B/W0.05lux Color/
    Consumption 5W,808nm ,NIR
    Laser lens 30mm F1.0 Fast lens,GHT-II homogenizing 30mmF1.4 telephoto lens,GHT-II homogenizing
    Laser angle 2°~50° 1.2°~40°
    Angle control DSS digital illumination control,30ms fast track response, min 0.1° illumination zooming, manual/automatic
    Optical axis aiming 0.01°SLM automatic axis automatic aiming and locking ,reserved external interface, maintaining without take out the case
    Pan rotation 0°~360° continuously
    Tilt rotation -90°~+90°
    Rotation speed Pan: 0°~100°/s,Tilt: 0°~80°/s
    Preset 128
    Line scan 3 path(User could set up the starting point, destination and scanning speed)
    Patrol 6 path(each path have 16 point, staying time is adjustable)
    Customized function Customizable privacy shade, 3D box chosen magnification
    Interface RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP
    Compatibility Support ONVIF,GB/T28181
    Heat/demisting/ wiper Yes
    Laser switch Auto/manual
    Ingress protection IP66,anti-lighting,anti surge
    Operational temp. -35~55℃
    Power supply AC24V/2.5A,DC12V/3.5A, common≤40W,peak≤60W
    Weight 7kg

    * The detection distance is related to the object and environment etc. Please contact with us for further information.
