915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator

915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator

    • 915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator
    • 915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator
    • 915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator
  • 915nm IR IP66 Laser Surveillance Camera CCD Sensor With 200m Illuminator

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: MRC0652

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Laser Switch: Photosensitive/manual Switch
    Sensor: 1/3” Low Illumination Color To B/W CCD Pixel: 440000 Pixel
    Night Vision: 1km Wave Length: 915nm

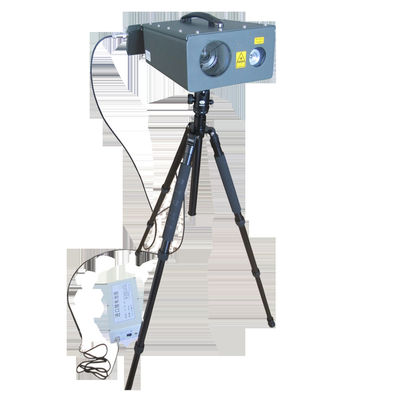

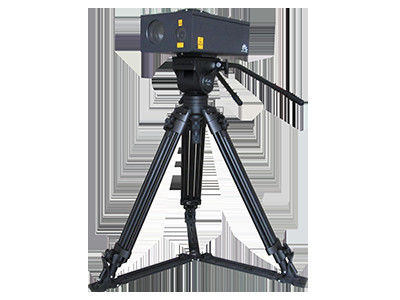

    Portable Night Vision Infrared Laser Surveillance Camera with200m illuminator



    MRC series portable infrared laser camera is designed for police gathering evidence. With telephoto zoom lens, high sensitivity color to B/W CCD and invisible laser illumination, the NIR laser camera have a detection human as far as 1500m in day and 1000m in night, identification human 400m in day and 300m in night. With covert laser illuminator, a good illumination effect.



    The control console with LCD display could control zooming, focusing, laser angle and on/off, built in acquisition and storage functions, real time video. Power supply of the camera is DC24V, DC24V lithium battery with big capacity is optional, DC12V to DC24V adapter and AC220V adapter as power supply. The control method is RS485 and laser switch control is via photosensitive and RS485 to ensure the using life of laser and easy control.



    Feature

    • Small size, portable and easy to install.
    • Covert infrared laser is capable with getting evidence in hidden place.
    • GHT super homogenizing and power consumption control of NIR laser make the best imaging effect, capability to identify faces and plate number.
    • Independent photoresistor control that make sure color to B/W camera and laser switch precise synchronization.
    • One integral aluminum alloy housing, weatherproof IP66.

    Application

    City safety, oilfield safety, railway security, night gathering evidence.

    Technical specification

    Model MRC0630C MRC0652 MRC0536C
    Detection (human) Day 1500m Day 2000m Day 600m
      Night 700m Night 1000m Night 400m
    Identification(face) Day 300m Day 400m Day 200m
      Night 200m Night 300m Night 150m
    Lens Sensor 1/3”low illumination color to B/W CCD 1/3” low illumination color to B/W CCD
    Focal length 15~300mm,motorized optical zoom, focus 15~528mm, ,motorized optical zoom, focus 4.5~162mm, motorized optical zoom, auto focus, Fog filter function
    Color mode Auto ICR switch
    Pixel 440000 pixel 440000 pixel
    Resolution 600 TVL 650TVL
    Min. illumination 0.006lux 0.002lux
    Laser Power 9W, manual adjustment 3W, manual adjustment
    Wave length 915nm 915nm
    Illumination angle 1-25° continuously variation, DSS digital illumination angle control, 0.1o precise control
    Switch Photosensitive/manual switch Manual switch
      LPR Super Reflective immunity, recognize license plate

    Filter window glass in daytime

    (optional)

    Internal PV polarizing lens, filter window glass in daytime External PV polarizing lens, filter window glass in daytime
    Housing Material Aluminum alloy Aluminum alloy
    Construction binocular monocular
    Glass 4mm microcrystalline white optical glass
    Coating Olive green/black
    Interface Waterproof connector
    Control console Display 5inch LCD display, resolution 640X480 4.3”inch LCD display, resolution 640X480
    Control Zoom, focus, laser focus, laser on/off, power control
    Storage format MP4
    Storage FLASH memory 2G, support extended SD card storage 32G SD card
    Output interface Mini USB
    Battery Lithium , AC220V adapter, Mini USB Lithium , AC220V adapter,
    Accessories (optional) Packing draw-bar box Damp-proof box
    Cable display control, cable of power connection, video cable, USB cable Power, video
    Power adapter DC24V 22Ah lithium power, AC220V to DC24V adapter, DC12V to DC24V adapter, display console charger. DC12V adapter
    Tripod 1 set
    Environmental indicator Operational temp. -25℃~+55℃
    Storage temperature -40℃~+65℃
    Surge suppression 150m/s2 11ms
    Others Power supply DC24V±10% DC12V±10%
    Total power consumption ≤30W ≤15W
    Weight 6kg 2.2kg

    Dimension

    (L xWxH)

    390mmx230mmx110mm 228mm×160mm×95mm

    * The detection distance is related to the object and environment etc. Please contact with us for further information.
