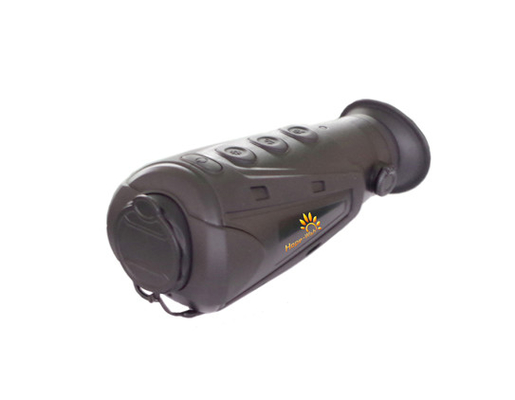

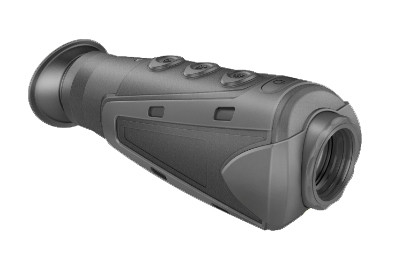

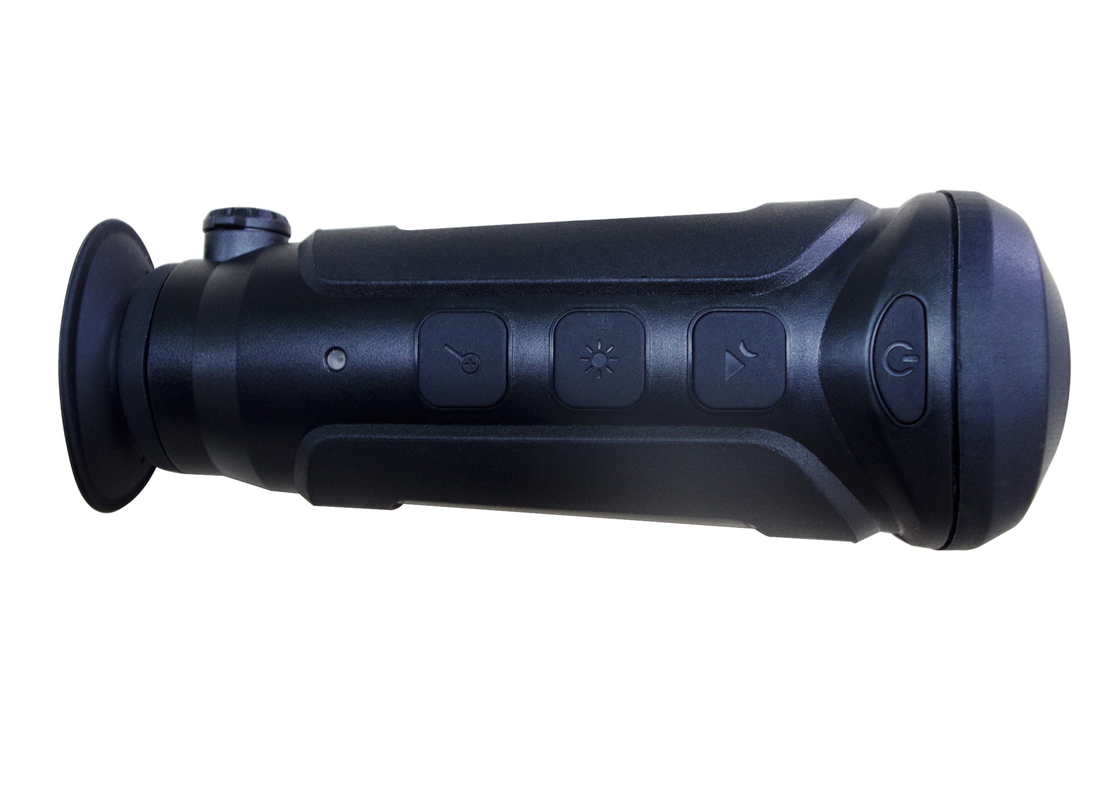

Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular

Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular
Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular

Large Image :  Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: MTC4102
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: carton
Payment Terms: L/C,, T/T, Western Union
Supply Ability: 100 pc per week

Navigating Saftely Heat Vision Monocular , 20mm Lens Thermal Infrared Monocular

Description
Resolution: 384*288 Waterproof: IP66
Digital Zoom: 2X,4X Lens: 20MM
Interface: Video Output Micro USB Battery: Yes
High Light:

night vision monocular

,

thermal night vision monocular

Handheld Infrared Thermal Imager with 20mm Lens for Navigating Saftely



Feature

  •  5th generation uncooled thermal sensor, decrease the size, weight and cost.
  •  Aluminum alloy housing, weatherproof rate IP65, anti-rain, anti-dust.
  •  NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow, obtain more delicate picture.
  •  Unique AS optical design and high precision optical mechanical design, excellent image quality.
  •  Excellent non-uniform image correct technology, good image and dynamic range, without TEC thermostatic control.
  •  SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode.

Application

Police , military, navy, night gathering evidence.



Technical specification

Model MTC4102R
Detection Vehicle 1500m
  Human 520m
Identification Vehicle 380m
  Human 160m
Sensor 5th generation UFPA
Resolution 384*288
Wave length 7.5~14μm
Digital zoom 2x ; 4 x
Color mode Hot-white/Hot-black
Lens 20mm, F1.0
FOV 28°*21°
Eyepiece display 640*480 , LCOS monocular display with eyeshade, high hidden,5 level brightness can adjust
Image storage/video 4G memory card, 1000photos in JPEG format, video for 3.5 hours in AVI format, USB export
ECO mode Auto
Operation Four buttons, single hand
Battery parameter

Operation voltage

DC: 3.7V

Power consumption<1W
1 lithium battery,25500,3000 mAh ;
Continuous working time : > 7 hour
Using life > 500 times , charge/ discharge cycles
Starting time <3s
Interface Video output micro USB
Weatherproof IP66
Humidity

10%~95%

(non-condensing)

Storage temperature -30℃~+70℃
Operation temp. -20℃~+60℃
Weight <400g
Dimensions 158(L)*62(L)*66(L)mm
Accessories Video cable, lens cap, rubber covert, charger, lithium battery, suitcase

* The detection distance is related to the object and environment etc. Please contact with us for further information.
