    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: TC6516

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    NETD: 50mK PTZ: Rotation, Pan: 0~355°, Tilt: -60~+10°
    Sensor: Uncooled UFPA Sensor Resolution: 640*512
    Lens: Zoom Lens Type: Thermal Camera

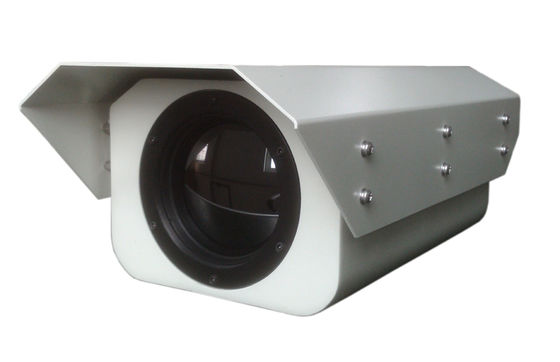

    TC6516 Long Range Infrared PTZ Thermal Imaging Camera with Continuous Zoom



    Feature

    1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
    2.  Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
    3.  Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
    4.  One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.



    Application

    Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.



    Technical specification



    Model TC4307A TC4511A TC4412A TC4516A TC4519A
    Detection Vehicle:6500m Vehicle:8600m Vehicle:10000m Vehicle: 13000m Vehicle: 16400m
    Human:2500m Human:3400m Human:4000m Human: 4800m Human: 5800m
    Identification Vehicle:1800m Vehicle:2400m Vehicle:2800m Vehicle:3400m Vehicle:4200m
    Human:700m Human:900m Human:1000m Human:1300m Human: 1600m
    Sensor 5th generation UFPA sensor
    Resolution 336*256 pixel (640*512 optional)
    Spectral 7.5 ~ 14μm
    NETD 50mK (@25 ℃ F1.0)
    Focal length 25 ~ 75mm 21 ~ 105mm 30 ~ 120mm 31 ~ 155mm 38 ~ 190mm
    FOV(H) 13° ~ 4.3° 18° ~ 3.4° 11° ~ 2.8° 11.2° ~ 2.2° 9.5° ~ 1.9°
    Lens control Motorized zoom and focus(optional auto focus)
    Lens design AS+DOE Advanced optical design, High infrared transmittance
    Zoom without virtual focus
    Image processing Stable operational temperature without TEC, starting time less than 4 seconds
    SDE digital image processing
    10 pseudo color and B/W, B/W inverse
    AGC
    2X digital amplification
    Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
    Interface : Aviation waterproof plug
    PT ( optional ) Duty: 20kg
    Rotation: Pan: 0 ~ 355°, Tilt: -60 ~ +10°
    Rotation speed: Pan: 9°/S, Tilt: 4°/S ,
    Preset 32 ( Optional variable speed PT )
    Interface RS-485 ( PELCO D protocol, baud rate 2400bps
    Remote OSD setting
    PAL/NTSC video output
    AC24V ( DC12V optional)
    Waterproof connector
    Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
    Storage temperature : -35 ℃~ +75 ℃
    Humidity : <90%
    Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
    Ingress protection : IP66

    * The detection distance is related to the object and environment etc. Please contact with us for further information
