    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: TC4105

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Detection: 4km Application: Railway Surveillance
    Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
    Focal Length: 50mm F1.0 Certificate: ISO FCC CE RoHS

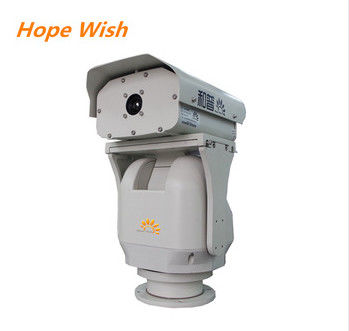

    TC4105 Railway Surveillance PTZ Infrared long rangeThermal Camera



    Feature

    1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather..
    2.  Special AS optical zooming lens and high-precision optomechanical design make a good image quality..
    3.  5th generation small size sensor. On basis of same imaging quality, the 5th generation thermal camera is much smaller.
    4.  Non-uniform image correction technology, stable operational temperature without TEC, good image uniformity and dynamic range.
    5.  SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.



    Technical specification

    Model TC4102- S TC4105- S
    Detection Vehicle: 1700m Vehicle: 4200m
      Human: 720m Human: 1640m
    Identification Vehicle: 420m Vehicle: 1200m
      Human: 180m Human: 470m
    Sensor 5th generation UFPA sensor
    Resolution 336×256 pixel, 9HZ
    Spectral range 7.5~14μm
    NETD 50mK
    Focal length 20mmF1.0 50mmF1.0
    Field of view(horizontal) 15.5°X 11.6° 6.5°X 4.8°
    Image processing 1. Stable operation temperature without TEC, starting time less than 4 seconds
    2,SDE digital image processing
    3,10 pseudo color and B/W, B/W conversion
    4,AGC
    5,2X digital amplification
    PTZ(Option) 1. Duty: 10kg
    2. Rotation: pan: 0~355°, tilt: -60~+10°
    3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S
    4. 32 presets
    (optional variable speed PTZ)
    Interface 1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional)
    2. Remote OSD setting
    3. PAL/NTSC video output
    4. AC24V/DC12V
    5. Waterproof aviation connector
    Environment parameters 1. One integral aluminum alloy housing
    2. Operational temperature: -35°~55°(-45° optional )
    3. Power consumption: common 8W, peak 36W(PTZ excluded)

    * The detection distance is related to the object and environment etc. Please contact with us for further information





    Application

    City safety, oilfield safety, railway security, night gathering evidence.
