Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination

Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination

    • Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination
    • Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination
    • Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination
  • Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: RC2132

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Type: IP Camera Technology: Night Vision Infrared
    PTZ: Load Duty:30kg PRESET: 80 (245 For Option)
    LASER: 808nm NIR Feature: IP66

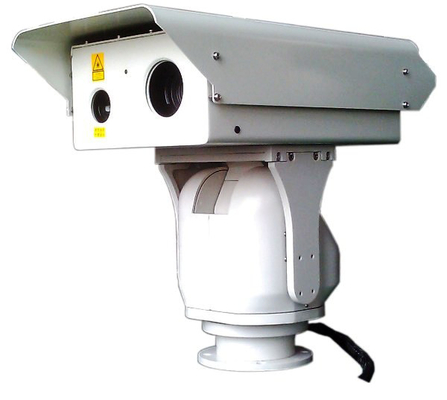

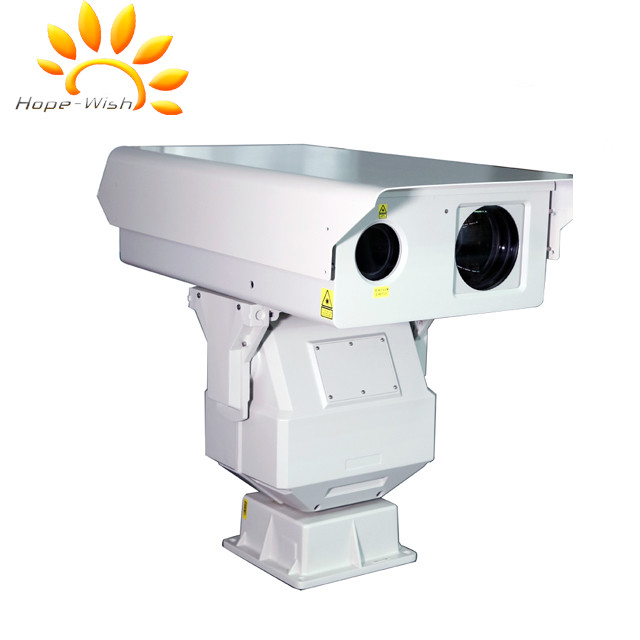

    Night Vision PTZ Long Range Infrared Camera with 3km laser illumination

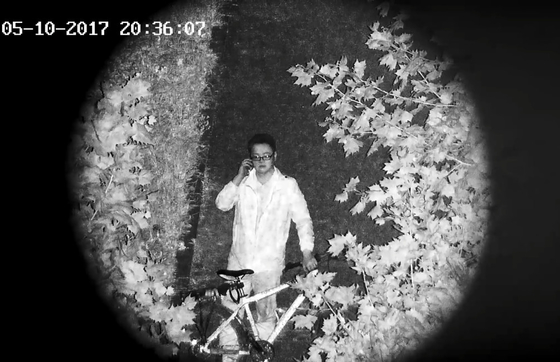

    Sirius RC long-range PTZ infrared laser camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night



    the laser night vision device consist of: the internal industrial-level embedded electronic control system, to stable control the camera zoom, focus, video switching, PTZ pitch / rotation , the housing with aluminum alloy up to IP66 ingress protection, to ensure that equipment continuous running in the rugged environment.



    Application

    Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.



    Model RC2132 RC2030 RC2050 RC2077
    Detection Day:2km; Day:2km; Day:3 km; Day: 4 km;
      Night:1km Night:1km Night:1.5km Night: 2km
    Consumption 10W,808nm , NIR 10W,808nm , NIR 12W,808nm , NIR 15W,808nm , NIR
    Laser angle 1°~20° 1°~20° 0.7°~20° 0.5°~20°
    Angle and distance matching 1.DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
    2.GHT-II super homogenizing HD illumination technology
    3.0.01°SLM optical axis aiming and locking

    Camera



    1/2.8'' CMOS 1/1.8''CMOS
    0.005lux high sensitive color to B/W CCD 0.0002lux high sensitive color to B/W CCD
    2MP, 1920*1080, Automatic ICR switch
    H.264/MPEG4/MIPEG video format, support dual stream
    Photo Cell Control Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night
    Lens 8-320mm 12-320mm 15-528mm 23-750 mm
    HD infrared correction, same focus at day and night
    motorized /manual zoom
    Penetrate fog AFR enhanced image processing technology AFR enhanced image processing technology (fog filter optional)
    LPR (optional) Avoid strong light, license plate recognition
    Housing 1. Material: integral aluminum alloy housing,sealed and waterproof
    2.Structure: double window design
    4.Weather proof: IP66, waterproof, dustproof
    5.Connector:Aviation Water-Proof Connector

    PT





    Load duty:25kg Load duty:30kg 50kg
    Pan: 360° continuously,Tilt: +45°~-90° Pan: 360° continuously,Tilt: +40°~-75° Pan: 360°continuously,Tilt: +45°~-45°
    Rotation speed:Pan: 0.01~100°/S,Tilt: 0.01~30°/S Rotation speed:Pan: 0.01~60°/S,Tilt: 0.01~30°/S Pan: 0.01~30°/S,Tilt: 0.01~15°/S
    Preset:80 (245 for option), with patrol and scan function
    Interface 1*RJ45,1*AC/DC 24V
    Water-Proof Connector
    Protocol

    1.TCP/IP,HTTP,DHCP,DNS,DDNS,RTP and so on

    2.Support Onvif 2.0

    3.Pelco-P,Pelco-D baud rate 2400,4800,9600,19200(optional)

    Power supply AC/DC 24V±10%,50Hz,150W, AC220V->AC24V adapter (DC12V for option)

    environmental

    index

    1.Working temperature: -25℃~+55℃ (-40℃ optional)

    2.Storage temperature:-35℃~+65℃

    3.Humidity:<90%

    4..Anti-ShakeAnti-shock

    5.IP66 ingress protection

    Weight ≤30kg ≤45kg





    Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination

    Night Vision PTZ Long Range Infrared Camera With 3km Laser Illumination
